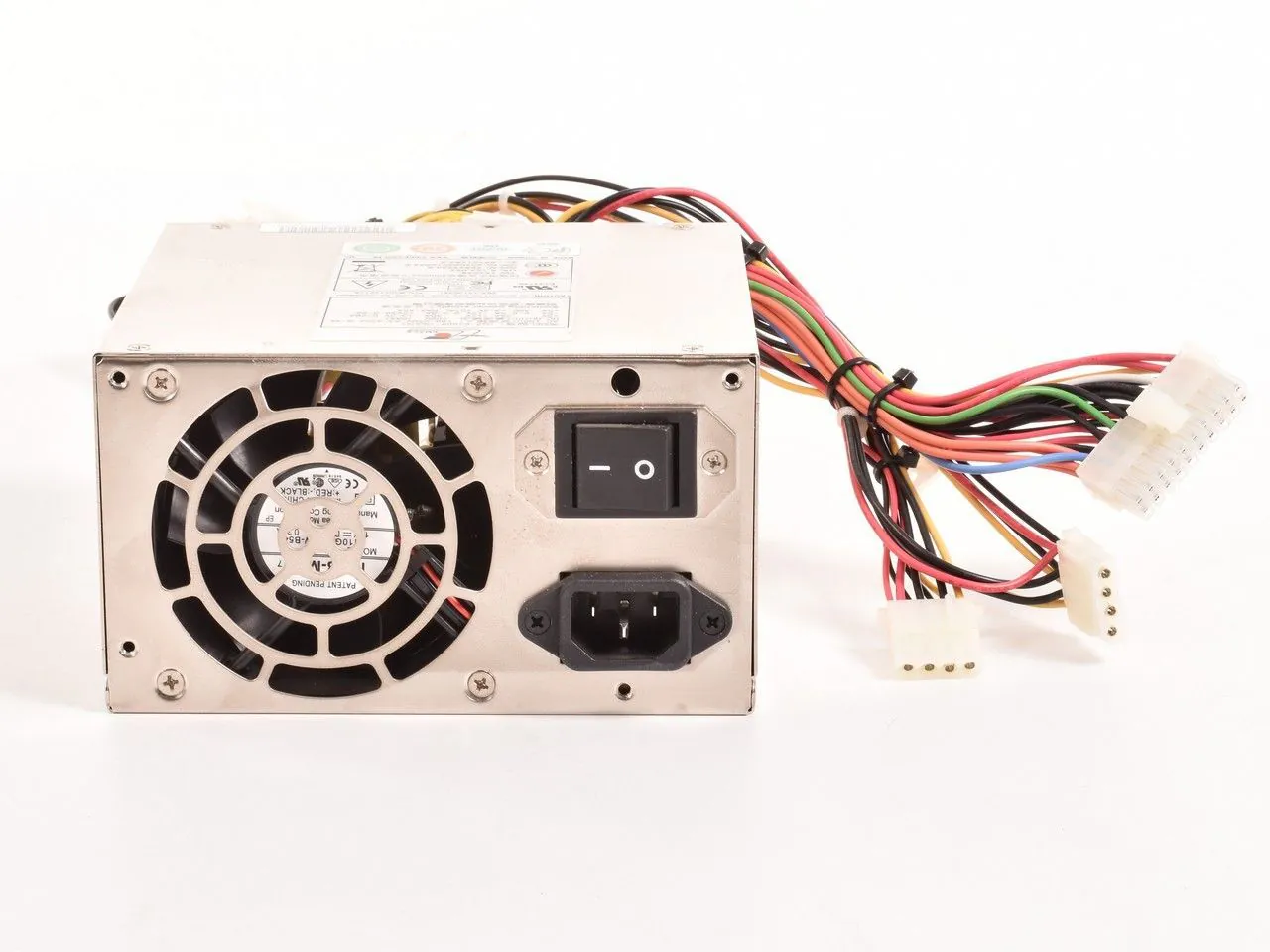

ZIPPY EMACS HG2-6400P 400W POWER SUPPLY
ZIPPY, müşterilerinin taleplerini her an karşılayabilmek için, müşterilerinin ihtiyaçlarına göre değişen özelliklerde ve farklı ebatlarda küçük miktarlarda üretim yapma kapasitesine sahiptir.
FEATURES
- Support – AC cable pull back from rear side(Option)
- Smart Fan Speed Control
- Standard Dimension -ATX/PS2
- Protections：OVP/SCP/OPP
Dimension
140(D)*150(W)*86(H)
Application (Form Factor)
- ATX-PS2
INPUT CHARACTERISTICS
| Parameter | Notes & Conditions | Min. | Type. | Max | Units |
| Operating Voltage Range | 90 | 264 | Vac | ||
| Input Frequency Range | 47 | 63 | Hz | ||
| Maximum Input Current | *Io=100%；Low Line *Io=100%；High Line |
8 4 |
A | ||
| Leakage Current | 3.5 | mA | |||
| Inrush Current | *Vin=115Vac,Cold start/25℃ *Vin=230Vac,Cold start/25℃ |
65 125 |
A |
OUTPUT CHARACTERISTICS
| WATTAGE | OUTPUT | ||||||
| 5V | 3.3V | 12V | -12V | -5V | 5VSB | ||
| 400W | 35A | 28A | 30A | 0.8A | 0.5A | 2A | |
| Load Regulation | +/-5% | +/-5% | +7/-5% | +/-5% | +/-5% | +/-5% | |
| Ripple & Noise | 50 | 50 | 120 | 150 | 150 | 50 | |
ENVIRONMENTAL SPEC.
| Parameter | Notes & Conditions | Min. | Type. | Max. | Units |
| Temperature | -10 | 45 | ℃ | ||
| Relative Humidity | Non-condensing | 20 | 80 | % | |
| Emissions | EN55032 FCC Part15 |
CLASS B | |||
| Surge | EN61000-4-5 |
DM：+/-1KV CM：+/-2KV |
|||
| Harmonic Currents | EN 61000-3-2 | CLASS D | |||
GENERAL SPEC.
| Parameter | Notes & Conditions | Min. | Type. | Max | Units |
| MTBF | Io=100%；Ta=25℃ per MIL-HDBK-217F |
167247 | Hours | ||
| Efficiency | Io=100%；Vin=115Vac | 70 | % | ||
| Power Density | 3.63 | W/in3 |
