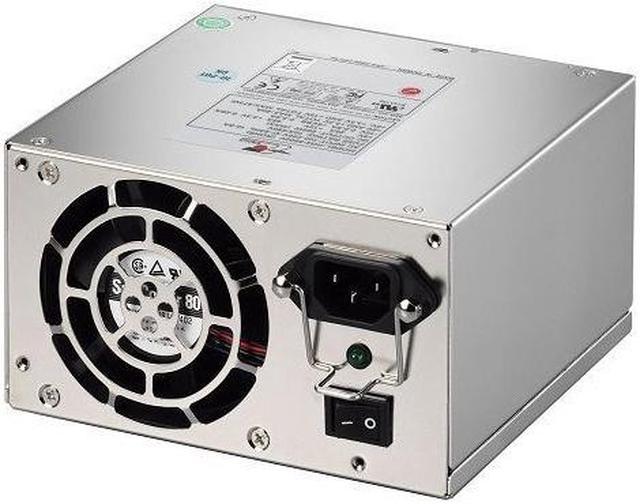

Zippy Emacs HG2-5400V 400W Atx Power Supply
ZIPPY, müşterilerin taleplerini her zaman karşılamak için küçük miktarlarda birden fazla boyutta üretim yapabilir ve müşterilerin ihtiyaçlarına göre özellikleri değiştirebilir.
FEATURES
- 80PLUS Standard
- Support – AC cable pull back from rear side(Option)
- Smart Fan Speed Control
- Standard Dimension -ATX/PS2
- Protections：OVP/OCP/SCP/OPP
- Operation Altitude：5000meters
Dimension
140(D)*150(W)*86(H)
Application (Form Factor)
- ATX-PS2
INPUT CHARACTERISTICS
| Parameter | Notes & Conditions | Min. | Type. | Max | Units |
| Operating Voltage Range | 90 | 264 | Vac | ||
| Input Frequency Range | 47 | 63 | Hz | ||
| Maximum Input Current | *Io=100%；Low Line *Io=100%；High Line |
6 3 |
A | ||
| Leakage Current | 1.5 | mA | |||
| Inrush Current | *Vin=115Vac,Cold start/25℃ *Vin=230Vac,Cold start/25℃ |
20 40 |
A |
OUTPUT CHARACTERISTICS
| WATTAGE | OUTPUT | ||||||
| 5V | 3.3V | 12V | -12V | 5VSB | |||
| 400W | 20A | 20A | 30A | 0.8A | 3.5A | ||
| Load Regulation | +/-5% | +/-5% | +/-5% | +/-5% | +/-5% | ||
| Ripple & Noise | 50 | 50 | 120 | 120 | 50 | ||
ENVIRONMENTAL SPEC.
| Parameter | Notes & Conditions | Min. | Type. | Max. | Units |
| Temperature | 0 | 50 | ℃ | ||
| Relative Humidity | Non-condensing | 20 | 80 | % | |
| Emissions | EN55032 FCC Part15 |
CLASS B | |||
| Surge | EN61000-4-5 |
DM：+/-1KV CM：+/-2KV |
|||
| Harmonic Currents | EN 61000-3-2 | CLASS D | |||
GENERAL SPEC.
| Parameter | Notes & Conditions | Min. | Type. | Max | Units |
| MTBF | Io=100%；Ta=25℃ per MIL-HDBK-217F |
181972 | Hours | ||
| Efficiency | Io=100%；Vin=115Vac | 80 | % | ||
| Power Density | 3.63 | W/in3 |
